Product Description

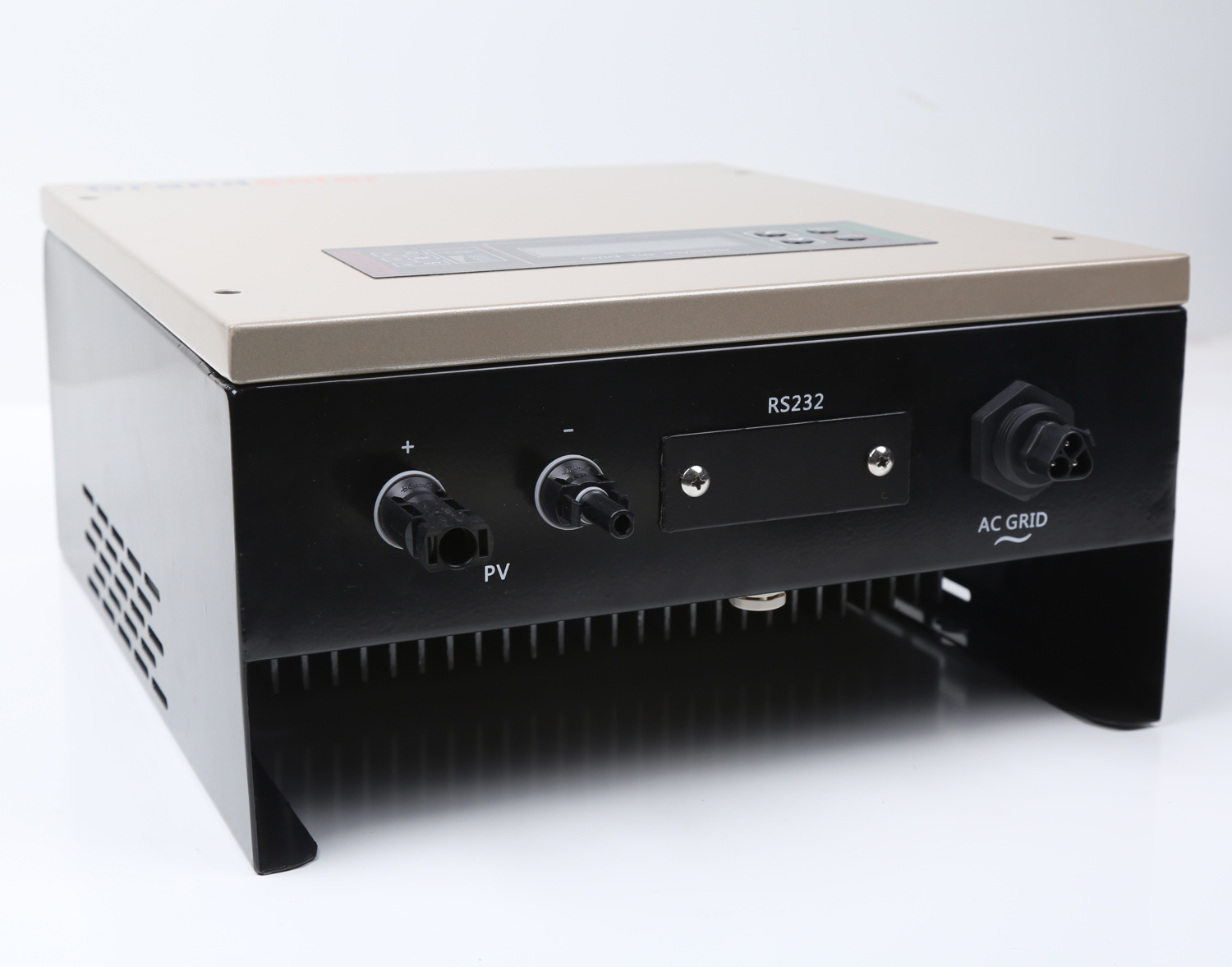

3KW GRID TIE SOLAR INVERTER 3000W FOR HOME SOLAR POWER SYSTEM
Feature:
1. Max efficiency to 98.5%
2. Wide input voltage range, high efficient MPPT.
3. Multiple inverters can be operated in parallel.
4. Without insulated transformer, strong IP65 protection.
5. Small and light, easy to installation.
6. LCD display.
| DC Input |
| Maximum DC Input Power | 3200W |
| Maximum DC Input Voltage | 500VDC |
| Maximum DC Input Current | 13A |
| MPPT Tracking Number/
Each Input String Number | 1 |
| MPPT Tracking Voltage Range | 180-500VDC |
| Power Off/On Voltage | 100/200VDC |
| | |
| AC Output |
| Rated Power | 3000W |
| Voltage Range | Single Phase AC 230V(190-270V)
Adjustable according to different countries and regions requirement. |
| Rated Voltage Range | 230VAC |
| Frequency | 50Hz / 60Hz |
| Phase number | Single Phase |
| Power Factor | 1 |
| Max Output Current | 13.6A |
| Current THD | At Rated Power And In The Sine Wave<5% |
| Max Efficiency | 97.5% |
| Europe Efficiency | 97% |
| MPPT Efficiency | 99.5% |
| Structure |
| Protection Degree | IP65 |
| Cooling Method | Nature Cooling |
| Noise | <50dB |
| Data Interfaces | RS 485/ RS 232/ (Standard), WiFi Modular(Optional) |
| Isolation type | Non-isolated |
| Standby Power Consumption | 0W |
| LCD Display | LCD |
| DC Switch | Integration |
| | |
| Protection |
| Support | DC Input Switch, Anti-island, Output Over-current, Input Reverse Connection,
DC/AC Surge Protection, Insulation Resistance Testing, RCD Testing, Upgrade WIFI |
| RCD Testing | Support |
| Protection (Inverter) | Input Overvoltage, Output Short Circuit, Overload, Overheat |
| Protection (Grid) | Anti-islanding(IEEE1547), over/under voltage of grid, over/under frequency of grid. |
| General Parameters |
| Input Terminal | MC4 |
| Output Terminal | Connect Terminals |
| Topology | No Transformer |
| Warranty | 5 Years Warranty, Can Be Extended to 10 years |
| State Grid Function | Yes |
| AC Switch | Integration |
| Operation temperature Range | Air Flow, -10 ℃ ~40 ℃ ( 50 ℃ ) |
| Storage temperature | -25 ℃ ~ 60 ℃ |
| Relative humidity | 0~100% |
| Environment | No Corrosion Gas, Flammable Gas, Gas Fumes and Dust Etc |
| Altitude | 6600 Feet 2000m, Max. 3000m |
| Size | 335x365x140mm |
| Weight | 14kgs |
