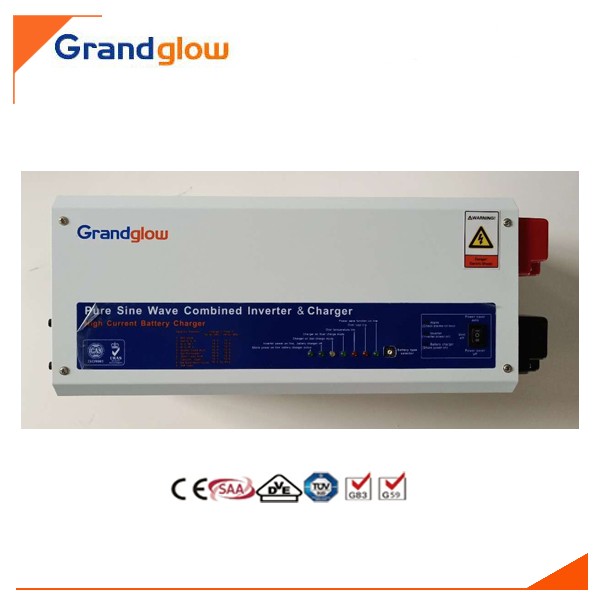

1000W pure sine wave 12V 24V 48V 220V 110V single-phase off grid UPS solar converter with charger

Name: 1000W pure sine wave 12V 24V 48V 220V 110V singlephase off grid UPS solar converter with charger
Brand: Grandglow
Price: 127.00 USD

Quality 1000W pure sine wave 12V 24V 48V 220V 110V single-phase off grid UPS solar converter with charger wholesale

Network : SDK

Customized support : Software reengineering

Place of Origin : Hubei, China

Brand Name : Grandglow

Model Number : PS1000II W

Type : DC/AC Inverters

Output Type : Single

Output Current : 5A

Output Frequency : 50Hz/60Hz±0.3

Size : 470*210*170MM

Weight : 12KG

Certificate : ce

Peak Power : 3000W

State Grid Normal Input Voltage : AC120V/230V

Battery type : Lead acid, Gel, lithium battery, customized

Nominal Efficiency : 90%

AC Charging Function : can open or close at any time

AC Charging Current : 10-90A

Grid input voltage range : 160-260VAC

Communication : RS232/GPRS/WIFI/Mobile APP

Conversion Time : <5ms

Packaging Details : CARTON

Port : any port of China

Supply Ability : 1000 Piece/Pieces per Month

Price : $127.00 - $134.00/pieces

Contact Now

GOOD PRICE 1000W PURE SINE WAVE DC 12V 24V 48V AC 220V 110V SINGLE PHASE OFF GRID UPS SOLAR CONVERTER WITH CHARGER

Product Description

Minimum Start Voltage: 10V(12V) 20V(24V) 40V(48)

Low Battery Voltage Alarm: 11V(12V) 22V(24V) 44V(48)

Protection : Overload, over/low voltage, short circuit, over temperature

Environment Temperature: 0℃~50℃

OUTPUT WAVE: PURE SINE WAVE


1000W pure sine wave 12V 24V 48V 220V 110V single-phase off grid UPS solar converter with charger

SPECIFICATION

General Parameters
Power Saving Mode	<50W
Overload Protection	110%-125% 15ms,125%~150% 20s,>150% 5s
Maximum AC Input Voltage	AC150V/280V
Nominal Input Frequency	50/60Hz(Auto detect)
Low Frequency Trip	47Hz/57Hz
High Frequency Trip	55Hz/65Hz
Charging Voltage Range	95V~135V/164~253V,194~253V
Overcharge Protection	15.7V(12V),31.4V(24),62.8V(48V)

1000W pure sine wave 12V 24V 48V 220V 110V single-phase off grid UPS solar converter with charger

WORKING DIAGRAM

Certifications

CERTIFICATIONS

1000W pure sine wave 12V 24V 48V 220V 110V single-phase off grid UPS solar converter with charger
